Board and Batten Chair Rail: 9 Ways to Use the Full Set

The projects ahead run from a straight hallway wall you can knock out in a Saturday to a staircase where every cut is a compound angle and the trim disappears into the math.

Height is the first decision: picture-frame boxes that stop at 32 inches, battens pushed to 36 so chair backs clear, or slats that climb waist-high and no farther for a first run at it.

MDF boards take paint without grain showing through, and a miter saw slices them clean; solid wood runs higher but grips a finish nail tighter if you are hanging brass hooks for coats later.

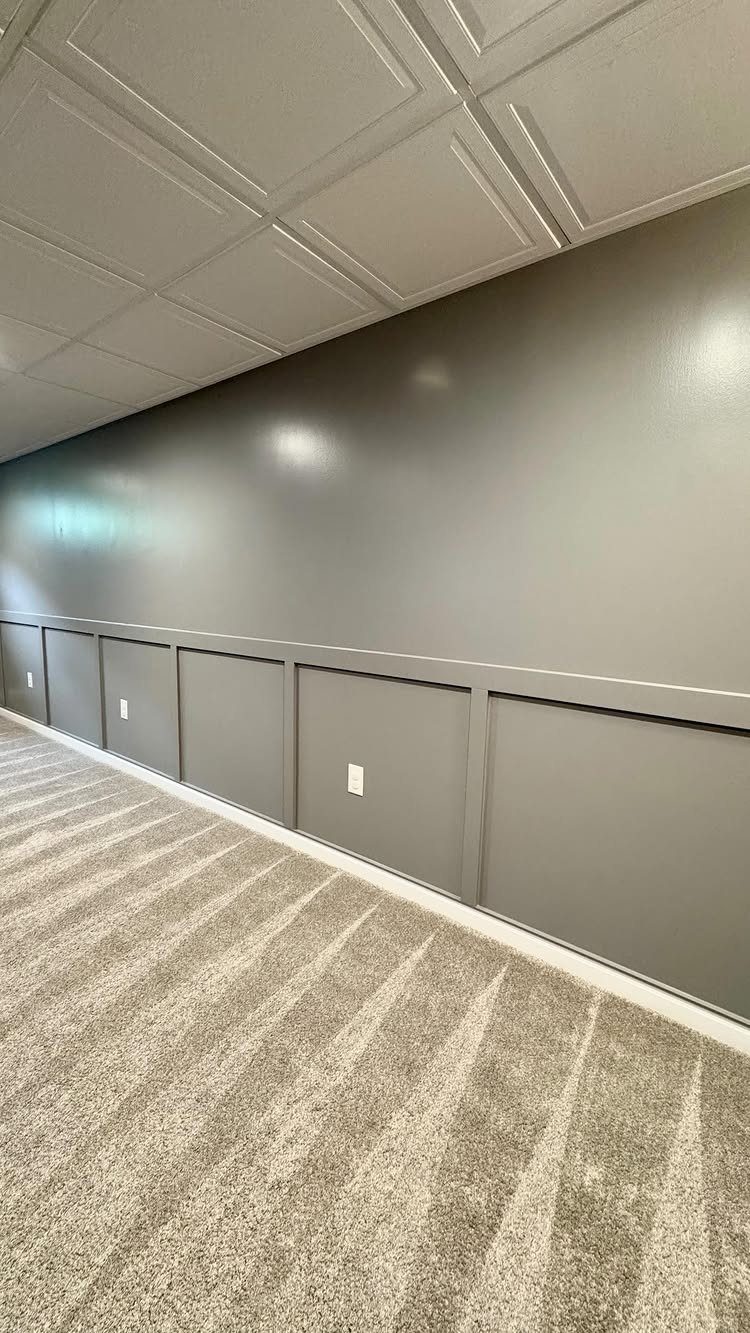

1. Vertical Battens

Spacing the battens is the part that takes real thought. I measure wall by wall, not room by room, since every wall hits a different width and outlets rarely land where you want them.

For a 58-inch wall with 2.5-inch battens, five battens eat up 12.5 inches of width. Split the remaining wall space into even gaps between the battens so the spacing looks intentional rather than random.

I aim for roughly 13 inches between centers, but anything within 2 inches of that disappears to the eye once the room is done.

MDF cuts clean and paints smooth; wood costs more but holds a nail better if you are attaching heavy hooks later.

This is the entry-level move for anyone who wants the look without fancy tools. A miter saw, a level, and a Saturday are enough.

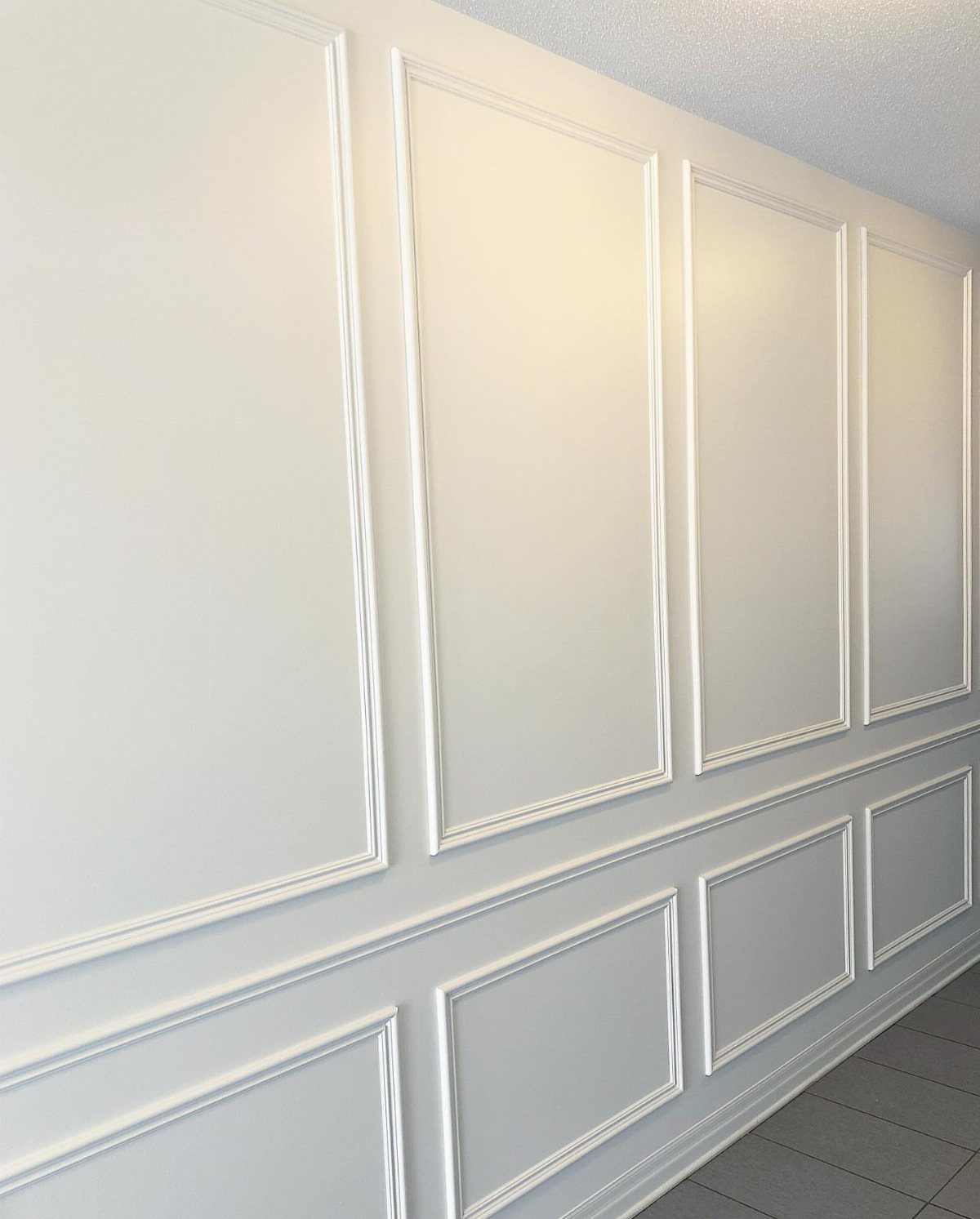

2. Chair Rail

The rail itself is just a horizontal band of trim, usually set 32 to 36 inches up from the floor. That range is not arbitrary; 36 inches clears most chair backs, and 32 inches looks right in rooms with lower ceilings.

What changes the height is what lives below it. A chair rail can act as a visual shelf between two zones of picture-frame molding, giving the eye a place to rest.

I would drop it to 32 inches in a room where the lower section stays plain board and batten, since more empty wall above reads calmer.

Paint the rail the same color as the wall, not the trim, if you want the molding to read as texture rather than frame. Two-tone, with the rail matching baseboards, works better in traditional rooms.

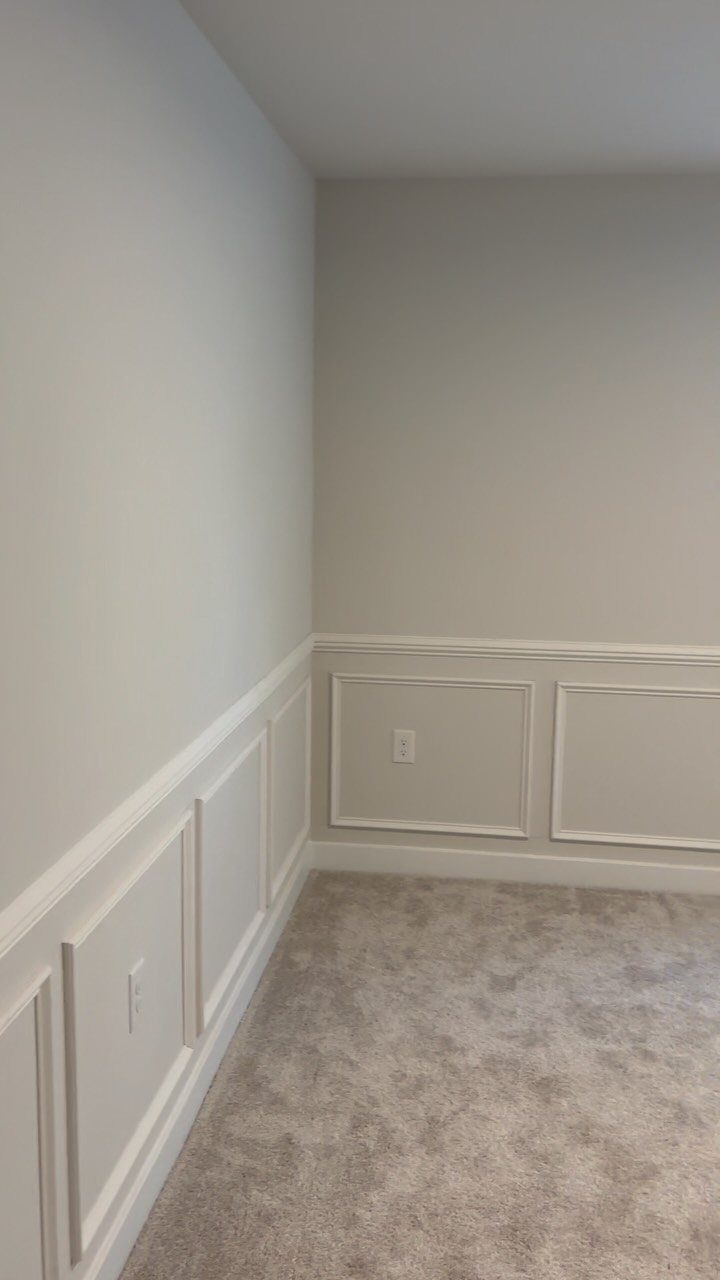

3. Picture Frame Wainscoting

Boxes of trim below the chair rail give you the formality of traditional wainscoting without the tongue-and-groove expense. The rectangles sit flat against the wall; you are building shadow lines, not raised panels.

I build boxes from thin trim, not the battens used in board and batten, so the look stays delicate.

Miter the corners or use small corner blocks if your saw skills are still developing; the blocks read as intentional in a cottage-style room.

This one suits renters less than owners. The trim removes cleanly enough, but the paint line at chair rail height is a tell that lingers.

If you are staging to sell, it photographs well and the materials cost less than most people assume for a dining room.

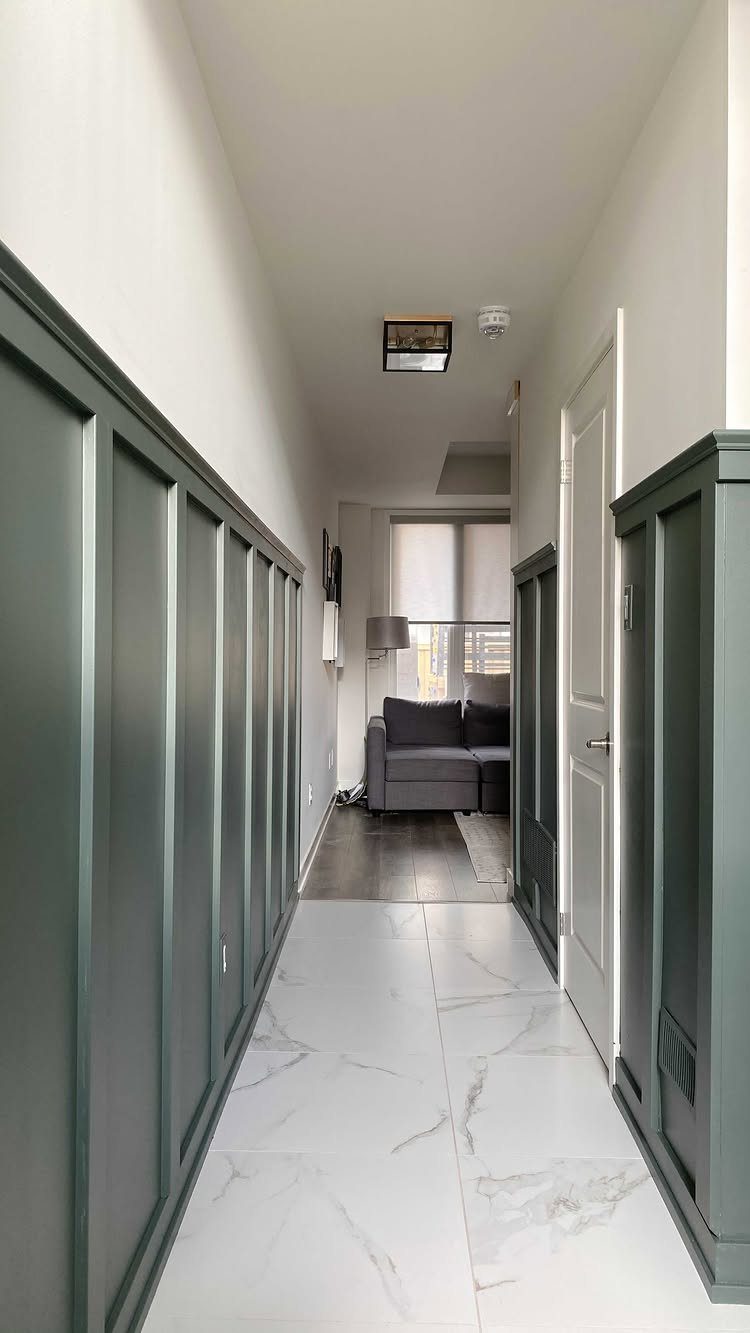

4. Hallway Board and Batten

Dark green wainscoting in a narrow space sounds like it would close the walls in, but the vertical lines do the opposite; they draw the eye forward, toward whatever light waits at the end.

The top rail caps the battens and gives you a natural stopping point for the color.

Hallways punish uneven work. Every flaw shows in the long sight line, so I check each batten for plumb twice before the nail gun comes out.

A light floor that reflects, such as white marble with grey veining, bounces light up onto dark paint and keeps a narrow corridor from feeling like a tunnel.

I would not go darker than this green unless the hallway gets direct sun for half the day. In a windowless interior passage, charcoal or navy turns oppressive fast.

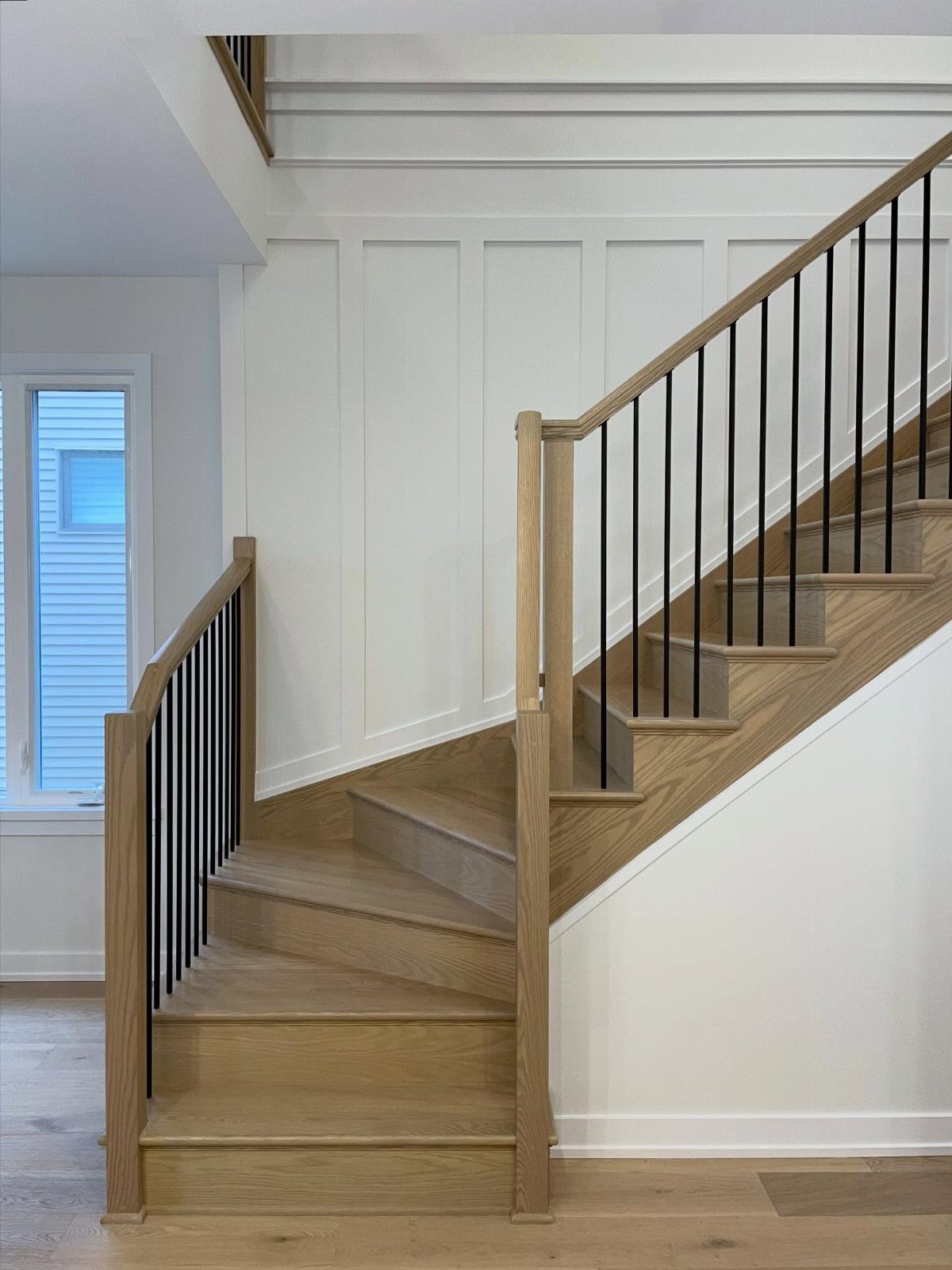

5. Staircase Board and Batten Trim

The wall behind an open staircase is mostly background; you see it in glimpses from below and through the balusters as you climb.

The math gets fussy. I add the width of every wall for chair rail length, then count boxes: each needs two vertical pieces at the box height, plus horizontal pieces totaling twice the combined width of all boxes.

Write it down before you buy; stair walls always have odd angles that eat trim.

White door and window trim can stay white even when the wall below goes dark; the contrast reads as intentional layering rather than a mistake. The contrast is a choice, not a mistake.

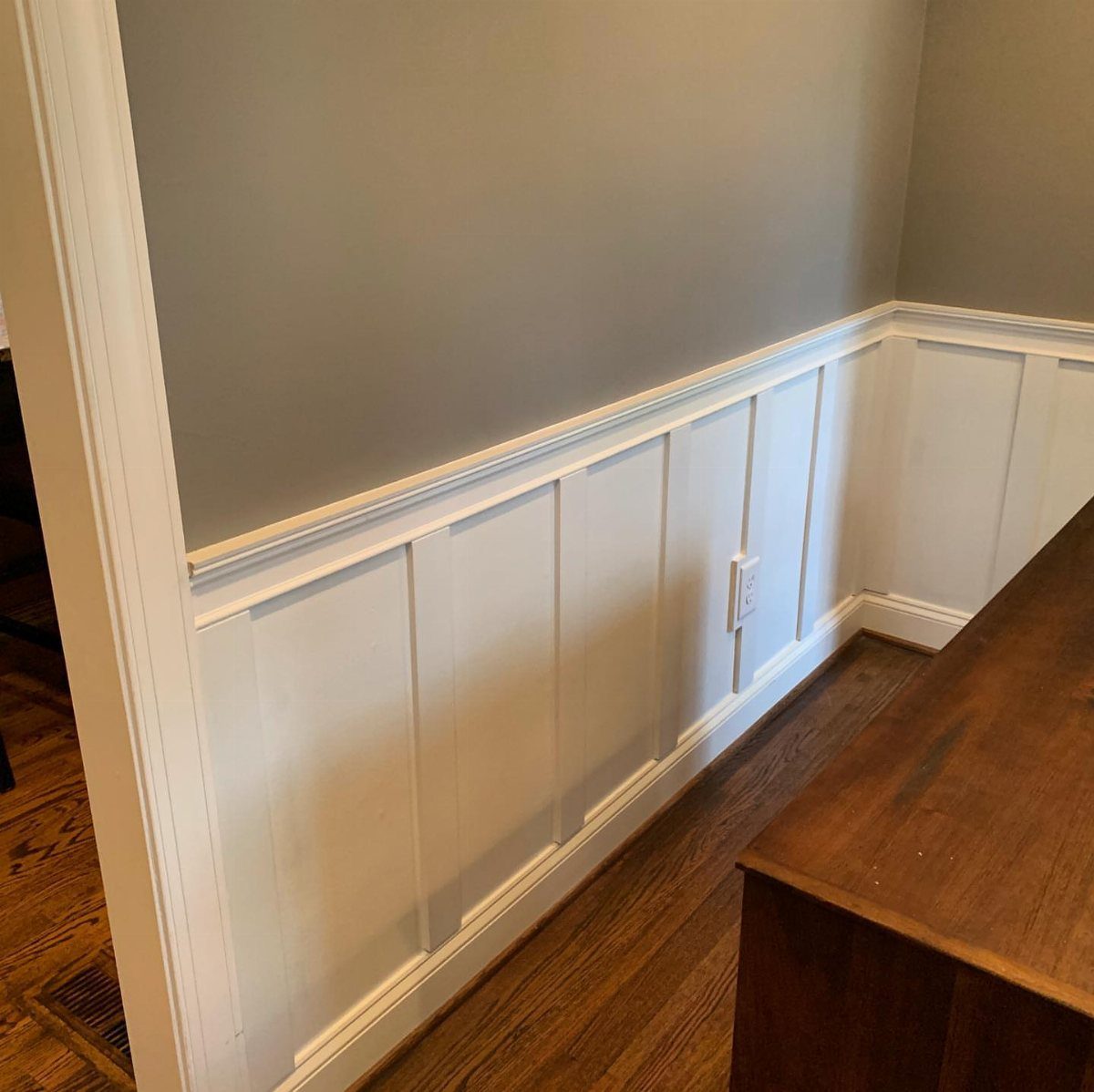

6. Lower Wall Slat Paneling

Capping board and batten with a chair rail at whatever height your wall feels half, usually somewhere near waist to chest level, splits the visual work evenly.

Grey paint above stays calm while white slats below do the heavy lifting, so the lower wall carries the detail and the upper wall stays quiet.

This is the version I would pick for a first project. The chair rail hides any unevenness where the battens meet the wall, and painting the upper section a single color means less taping than two-tone wainscoting.

Hardwood floors help; the warm wood picks up the white trim and keeps the room from feeling institutional.

One caution: the slats collect dust at their bases. A vacuum with a brush head, run down the channels every few weeks, keeps the crisp lines that make the treatment worth doing.

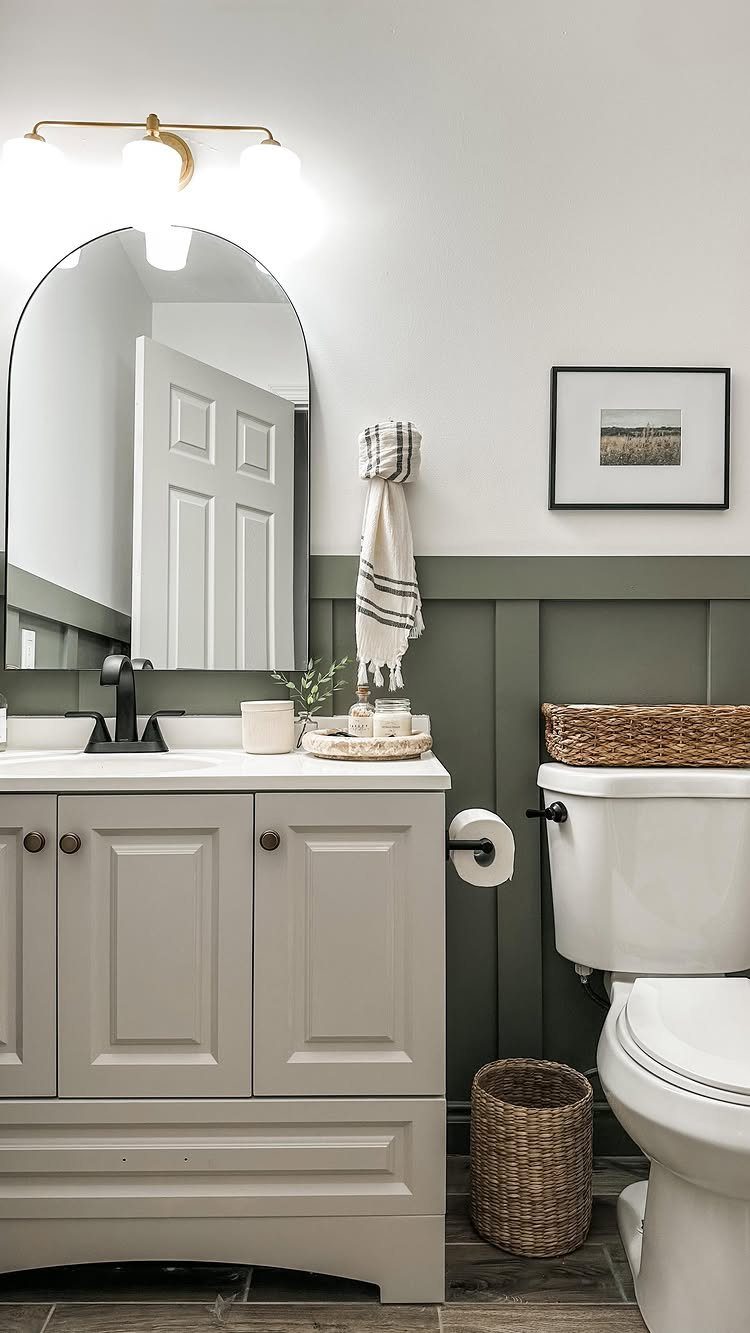

7. Bathroom Board and Batten

Bathrooms are where board and batten earns its keep. The wainscoting takes the hit from splashes and kicked-up water better than drywall ever could, and a satin or semi-gloss paint on top wipes clean without much thought.

A chair rail set to clear most vanities gives you a natural stopping point before tile or paint takes over above. Mine ran high enough to miss the backsplash and keep the mirror floating in open wall.

Check your light fixture placement before you set the rail height; nothing looks squeezed like a sconce pressed against the top board.

Green, gray, or white all read clean in a small space. Go darker only if the room gets real daylight.

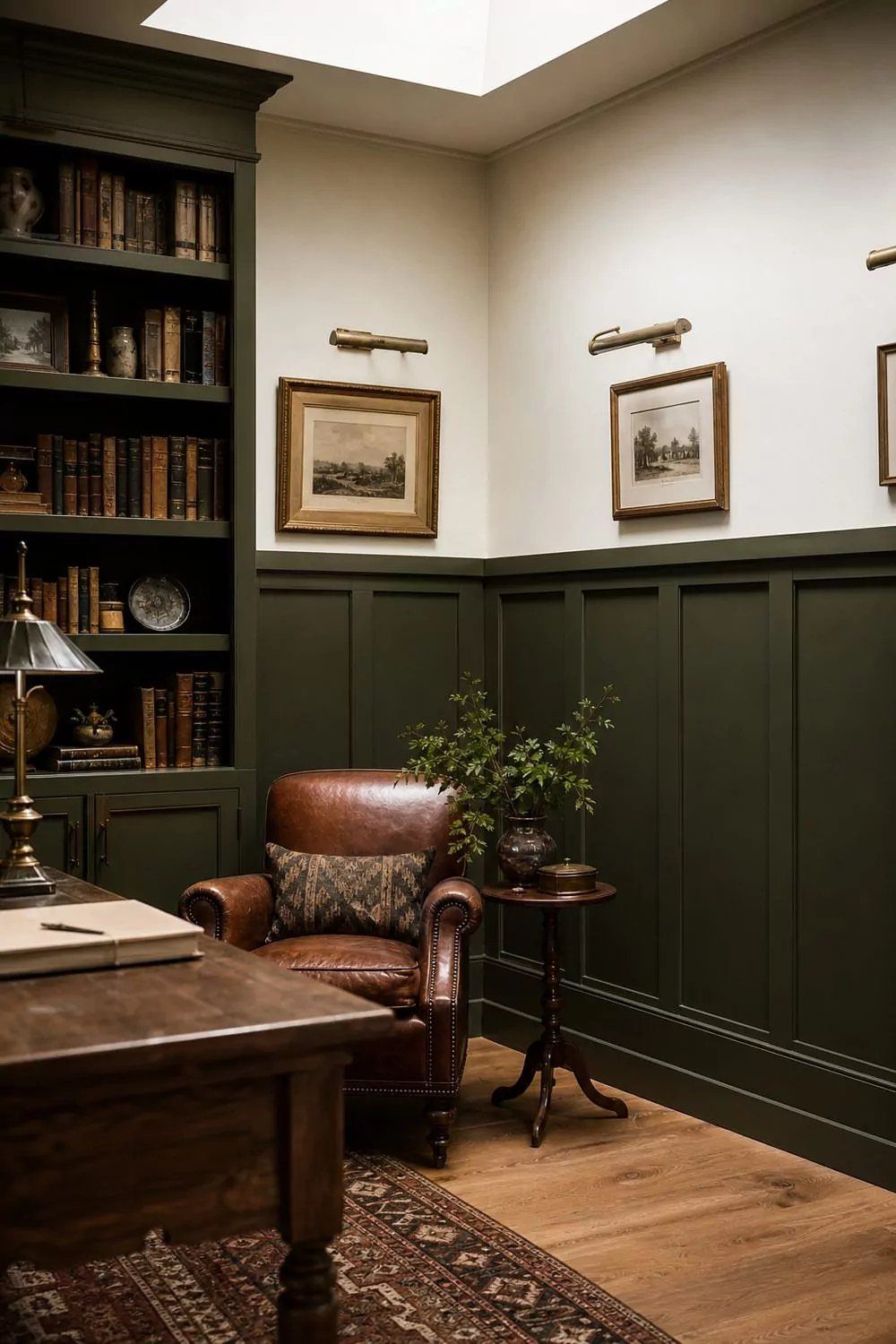

8. Study Board and Batten

Dark green wainscoting in a study reads intentional, not trendy, because the color sinks into shadow after sunset and lets the upper wall breathe.

I would paint the batten and field the same shade; two tones in a small office fight for attention you probably want on the shelf contents.

The chair rail here does double duty as a visual desk line. Set it low enough for a standard-height desk along the wall; the batten fills your peripheral view while you work without climbing into the screen space.

Built-ins, if you have them, look built in when the rail meets their top edge flush.

This suits someone who wants the room to feel held together at the end of a workday, not staged for a photo.

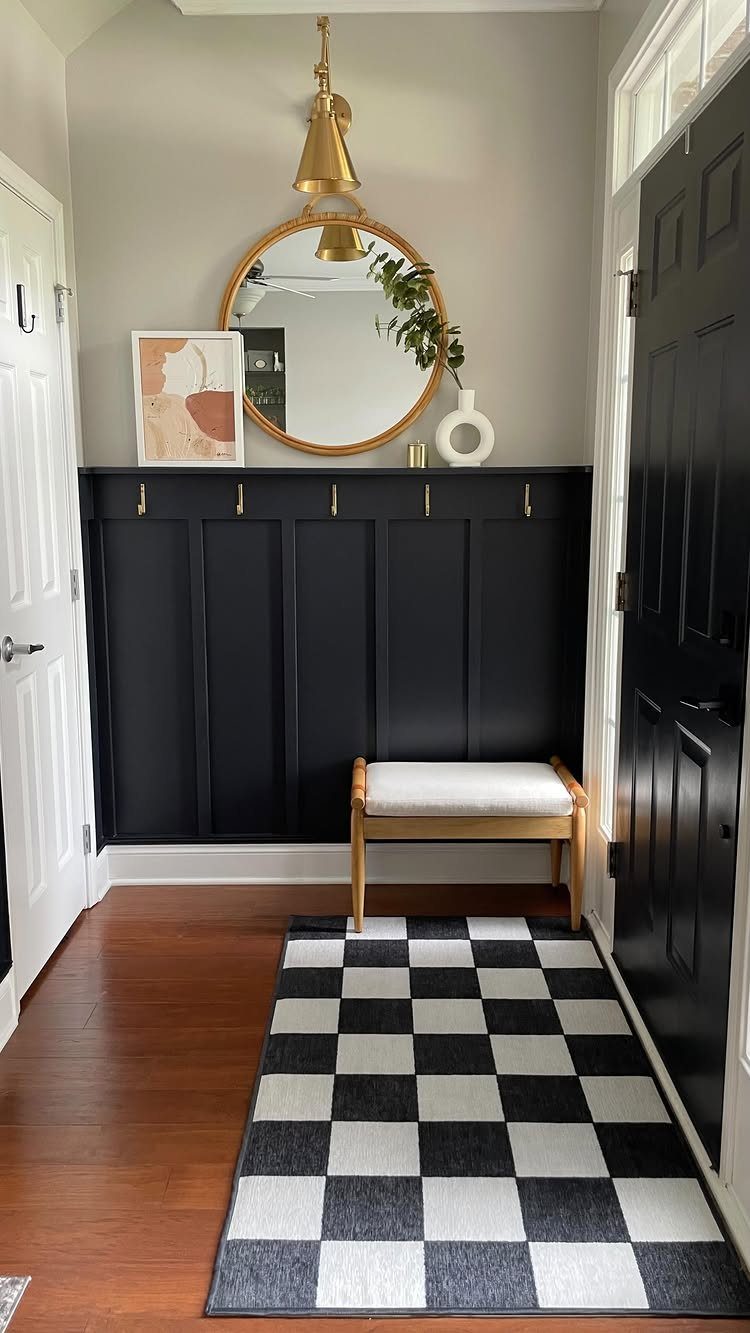

9. Entryway Board and Batten

Black battens with brass hooks turn the entry wall into actual storage, not just something to look at on the way through.

Vertical battens work better here than horizontal boards because coats hang straight against them without the gap-and-bulge problem.

Space the hooks wide enough for two jackets side by side without collision, or cluster three at one end for bags and leave the rest open.

A bench in front needs enough clearance to be usable. Less than that, and everyone ends up tying their shoes in the doorway.

DIY Project Tips

Start every wall with its own measured drawing, not a single room sketch. Door trim, baseboards, outlets, switches, and any built-ins all go on the plan before a single board gets cut.

Digital tools work; so does graph paper.

On the miter saw, keep the longest edge of your cut against the fence and the table insert. A laser guide helps, but the real insurance is measuring more than once.

For cap moulding that sits above the top rail, cut the flat edge first, then mark the depth of the adjoining piece and angle the side cuts at 45 degrees after. The skinny side faces up for that offset cut.

Corner cuts come last, once the flat reference edge is already true.

Tools Needed

A compound miter saw is the backbone of the job; a basic miter box with hand saw will work, but the power saw saves hours on repeated cuts.

A brad nailer or pin nailer drives the fasteners, backed by a level longer than your longest batten and a carpenter’s square for corners.

Caulk and wood putty hide the seams; a detail sander smooths them before paint. Painter’s tape, a stud finder, and a tape measure round out the layout phase.

A laser level is optional and genuinely useful for long walls where a bubble level drifts.

Cost Considerations

For a room needing four 8-foot lengths of horizontal trim and nineteen 1×3 vertical battens, materials including paint run under $300. That figure assumes standard MDF or pine stock and a single coat of quality paint over primer.

Chair rail moulding adds detail and cost both; leave it off and the price drops.

Liquid nails or construction adhesive behind the battens reduces the nail count and the fill work after. Caulk and spackle are not optional expenses; without them, the gaps between wall and board telegraph as shadow lines under interior light.

Color Coordination

Painting the trim and field the same color, whether white or a saturated green-blue like Deep Pewter, lets the molding read as architecture rather than applique. The single-hue approach also forgives slight imperfections in joint fit.

Raw wood blocks mounted between chair rail bands add warmth against painted base and door trim; the contrast stays controlled if the painted rail color is pulled from existing wallpaper or textiles.

A satin finish on the battens catches light across the vertical lines without the glare of semi-gloss in a bedroom or study.
